Product Comparison: Trellis Security Gates

Features

MAGNADOR CHAMPION
(Ultra-High Risk)

MAGNADOR STANDARD
(High Risk)

ALPHADOR
(Medium Risk)

VALUEDOR
(Low Risk)

$

Custom made



$

Full steel construction



$

Fully Galvanised



$

Top steel roller bearings



$

Telescopic metal Zinc bottom guides



$

Steel Top + Bottom Tracks
(With 180-degree Dutch bends)



$

Fully framed



$

Exterior Powder coated



$

Patented Stainless steel slam lock
(5 Year Guarantee)



$

Standard Slam Lock (1 Year Guarantee)



$

Double Locks



Optional

$

Lock cover plate (30mm wide)



$

Lock cover plate (17mm wide)



$

Double Uprights (12x12x1.2mm)



$

Single upright roll formed (17x24x1mm)



$

Temper Rolled Hardened steel cross braces (4 rows on standard height)



$

Temper Rolled Hardened steel cross braces (3 rows on standard height)



$

Magnador 5-year product guarantee



$

Example of application

Police stations, Jewellry stores, Banks, etc.

Front door, external, internal, sliding doors, stack doors, back doors, etc.

Front door, patio’s, sliding doors, stack doors, back doors, etc.

Internal install, passage-ways, complexes, estates, etc.

Product Comparison: Trellis Security Gates

Features

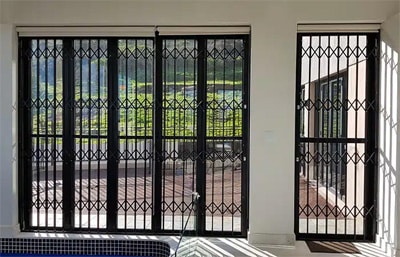

MAGNADOR CHAMPION
(Ultra-High Risk)



Custom made



Full steel construction



Fully Galvanised



Top steel roller bearings



Telescopic metal Zinc bottom guides



Steel Top + Bottom Tracks (With 180-degree Dutch bends)



Fully framed



Exterior Powder coated



Patented Stainless steel slam lock (5 Year Guarantee)

X

Standard Slam Lock (1 Year Guarantee)



Double Locks



Lock cover plate (30mm wide)

X

Lock cover plate (17mm wide)



Double Uprights (12x12x1.2mm)

X

Single upright roll formed (17x24x1mm)



Temper Rolled Hardened steel cross braces (4 rows on standard height)

X

Temper Rolled Hardened steel cross braces (3 rows on standard height)



Magnador 5-year product guarantee

Example of application: Police stations, jewellry stores, Banks, etc.

Features

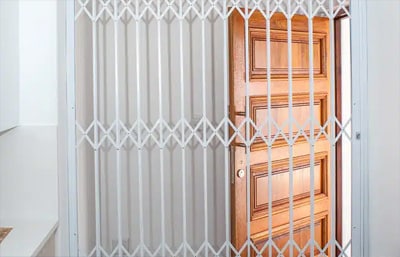

MAGNADOR STANDARD
(High Risk)



Custom made



Full steel construction



Fully Galvanised



Top steel roller bearings



Telescopic metal Zinc bottom guides



Steel Top + Bottom Tracks (With 180-degree Dutch bends)



Fully framed



Exterior Powder coated



Patented Stainless steel slam lock (5 Year Guarantee)

X

Standard Slam Lock (1 Year Guarantee)



Double Locks: Optional

X

Lock cover plate (30mm wide)



Lock cover plate (17mm wide)



Double Uprights (12x12x1.2mm)

X

Single upright roll formed (17x24x1mm)

X

Temper Rolled Hardened steel cross braces (4 rows on standard height)



Temper Rolled Hardened steel cross braces (3 rows on standard height)



Magnador 5-year product guarantee

Example of application: Front door, external, internal, sliding doors, stack doors, back doors, etc.

Features

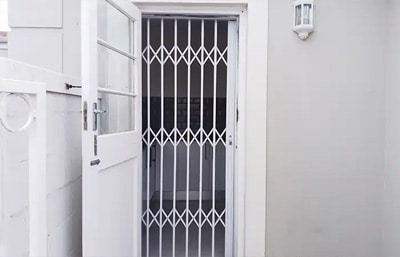

ALPHADOR
(Medium Risk)



Custom made



Full steel construction



Fully Galvanised



Top steel roller bearings



Telescopic metal Zinc bottom guides



Steel Top + Bottom Tracks (With 180-degree Dutch bends)

X

Fully framed



Exterior Powder coated



Patented Stainless steel slam lock (5 Year Guarantee)

X

Standard Slam Lock (1 Year Guarantee)



Double Locks: Optional

X

Lock cover plate (30mm wide)



Lock cover plate (17mm wide)

X

Double Uprights (12x12x1.2mm)



Single upright roll formed (17x24x1mm)

X

Temper Rolled Hardened steel cross braces (4 rows on standard height)



Temper Rolled Hardened steel cross braces (3 rows on standard height)



Magnador 5-year product guarantee

Example of application: Front door, patio’s, sliding doors, stack doors, back doors, etc.

Features

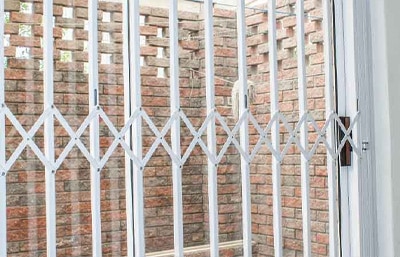

VALUEDOR
(Low Risk)



Custom made



Full steel construction



Fully Galvanised



Top steel roller bearings



Telescopic metal Zinc bottom guides



Steel Top + Bottom Tracks (With 180-degree Dutch bends)

X

Fully framed



Exterior Powder coated

X

Patented Stainless steel slam lock (5 Year Guarantee)



Standard Slam Lock (1 Year Guarantee)



Double Locks: Optional

X

Lock cover plate (30mm wide)



Lock cover plate (17mm wide)

X

Double Uprights (12x12x1.2mm)



Single upright roll formed (17x24x1mm)

X

Temper Rolled Hardened steel cross braces (4 rows on standard height)



Temper Rolled Hardened steel cross braces (3 rows on standard height)



Magnador 5-year product guarantee

Example of application: Internal install, passage-ways, complexes, estates, etc.

Benefits & Features

$

Custom made and designed for your opening

$

Can be installed on doors, windows and any other opening

$

Internal or external fitments

$

Face fix or reveal fix options available

$

Full steel construction (No aluminium)

$

Only fully galvanised steel used

$

Exterior powder coated in a range of colours, UV resistant and protects against corrosion.

$

Patented Stainless steel slam lock with auto deadlock function (high risk locking system on selected models)

$

5 pin off-centre cam cylinder

$

Roll-formed steel top and bottom tracks with 180-degree Dutch bends (for added strength + better coating adhesion)

$

Temper rolled hardened steel cross braces with stainless steel rivets (two and a half times stronger than mild steel)

$

Secured and framed on all 4 sides

$

Steel roller bearings for long lasting slide action (No Plastic/Nylon wheels)

$

Bottom telescopic metal zinc guide forks for uneven reveals and ease of operation

$

Up to 5-year warranties against defective workmanship, materials and corrosion. T’s +C’s apply.

$

Range of models to choose from depending on risk severity

$

Magnador double uprights are amongst the thickest in the industry (1.2mm wall thickness)
