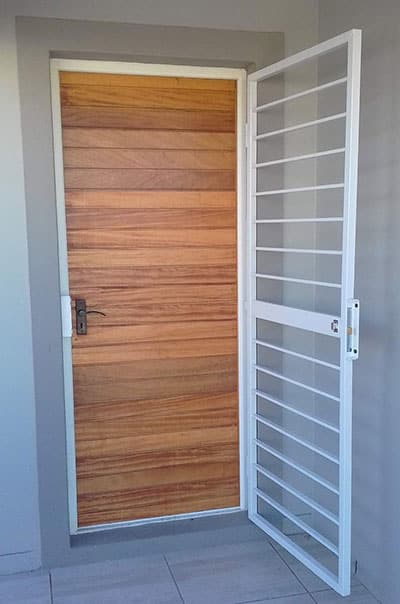

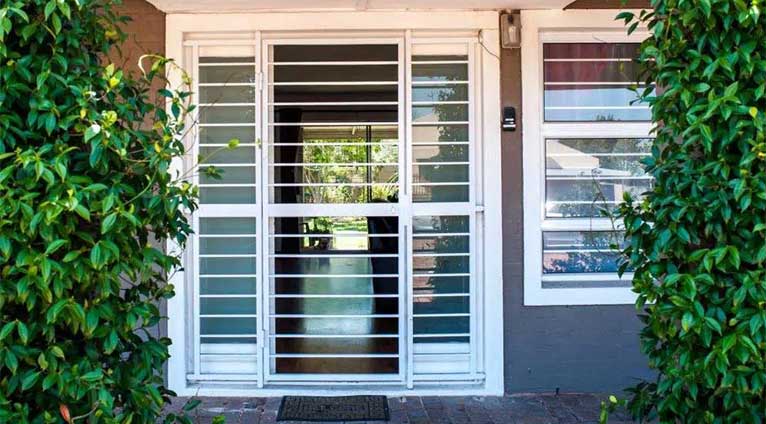

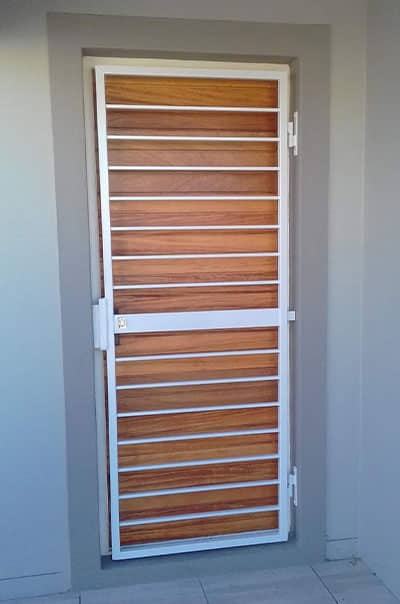

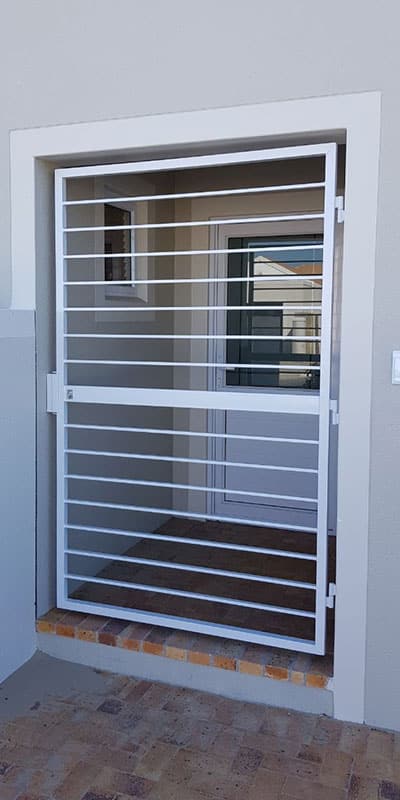

Swing Gates to protect your home and office

Magnador’s swing gates are custom manufactured with a set of eight standard designs to choose from, or purpose-built to customer specifications.  The product is hot-dip galvanized as per SABS management standards for  protection from corrosion, put through a 5-stage chemical wash to ensure clean surfaces that endure, and then coated in a Polyester powder coating – available in a range of colours – and resistant to the fading effects of the sun, fading and scratching.  A number of unique features are employed to make the swing gate as secure and tamper-resistant as possible. In addition, a 5-year warranty is included on the gate that covers workmanship and materials.

A number of innovative features distinguish our swing gates:

  • Stopper bars welded on to each of our swing gates buttresses it against leveraging.
  • Bullet hinges are used in conjunction with security snap-off bolts to maximise the strength of the fixings to the wall/reveal.
  • A uniquely designed, inter-fitting cover plate and wall-mounted locking box form a sealed unit once the gate is shut closed, and is highly resistant to leveraging and tampering.
  • A metal zinc-cast, dove-tailed guide is used in the bottom track to support the double uprights. This allows for a telescopic guiding action when opening and closing the door, eliminating the need for spaces between the doors with added compatibility for unevenness of flooring.

In addition, we have a range of locks to suit the customer’s access control requirements.

A metal zinc-cast, dove-tailed guide is used in the bottom track to support the double uprights. This allows for a telescopic guiding action when opening and closing the door, eliminating the need for spaces between the doors with added compatibility for unevenness of flooring.

NEED A QUOTE?

WHERE TO FIND US?

CAPE TOWN (HEAD OFFICE)
12, 21ST Street (Off Epping Ave)
Elsiesriver Industrials, Cape Town
GAUTENG
94 Carter Street (off Forest Street)
Forest Hill, Gauteng
DURBAN
8 Leon Place
Sarnia, Pinetown

swing gates
technical specs

Technical Specifications of the Swing Gate

  • Steel Outer Frame: 32mm x 32mm; 25mm x 75mm Horizontal Centre Bar which houses the lock.
  • (Design Specific): 16mm x 16mm square tube uprights, or 10mm x 10mm solid square bars
  • (100 x 20 mm) Bullet hinges, stopper bar, cover plate and locking box provide for greater protection against tampering.
  • Exterior Polyester powder-coating that is fade-resistant.
  • Hot-dip galvanised for greater protection from corrosion and a longer life expectancy.
  • A choice of locks – a latch lock, a roller-bearing lock or a remote-controlled electronic gate lock.

Technical Specifications of the Swing Gate

  • Steel Outer Frame: 32mm x 32mm; 25mm x 75mm Horizontal Centre Bar which houses the lock.
  • (Design Specific): 16mm x 16mm square tube uprights, or 10mm x 10mm solid square bars
  • (100 x 20 mm) Bullet hinges, stopper bar, cover plate and locking box provide for greater protection against tampering.
  • Exterior Polyester powder-coating that is fade-resistant.
  • Hot-dip galvanised for greater protection from corrosion and a longer life expectancy.
  • A choice of locks – a latch lock, a roller-bearing lock or a remote-controlled electronic gate lock.
swing gate mobile
swing gate mobile 2

To find out more about our swing gates, please contact our team directly via phone or email.
